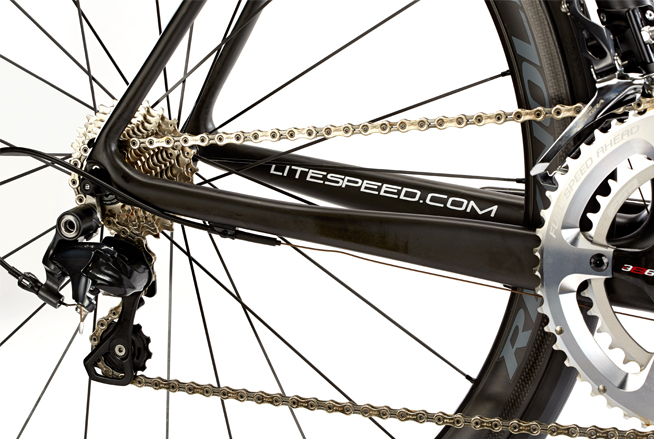

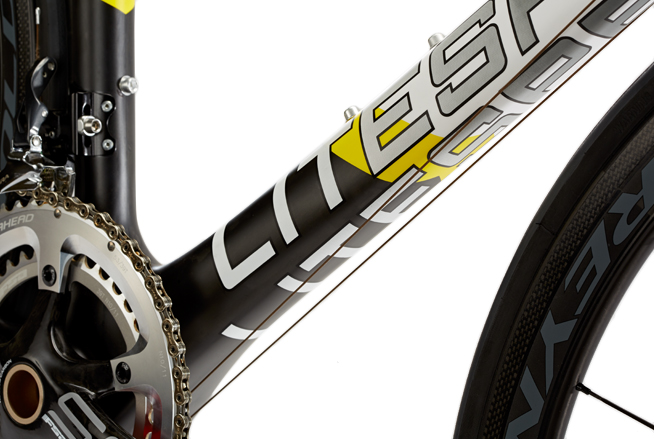

Serious design attention in every section on the L1 yields a technological marvel that rides stiff, solid, and fast. The same frameset features found on the L-Series flaghip, L1R, are incorporated in the L1. The Quadrilateral System - an engineered box shape near the head tube - improves braking stiffness and resistance to torsional stress. BB386 technology stiffens the bottom bracket area and allows larger tubing to be bonded. Every cross-section of the frame is designed to make you faster.
|
Size |
Top Tube |
Head Tube |
Seat Tube |
Seat Tube |
Chainstay |
BB Drop |
Wheelbase |
Front Center |
Fork |
Stand |
Head |
Stack |
Reach |
|
S |
52.5 |
72.5 |
74 |
47.5 |
40.5 |
6.87 |
96.3 |
56.8 |
4.3 |
72.3 |
11 |
51.5 |
37.8 |
|
M |
54 |
73 |
73.5 |
49.5 |
40.5 |
6.87 |
96.8 |
57.3 |
4.3 |
75.4 |
13 |
53.6 |
38.1 |
|
ML |
56 |
73 |
73 |
51.5 |
40.5 |
6.97 |
98.2 |
58.7 |
4.3 |
77.4 |
16 |
56.6 |
38.7 |
|
L |
57 |
73 |
73 |
53.5 |
40.5 |
6.97 |
99.3 |
59.8 |
4.3 |
79.7 |
18.5 |
59.0 |
39.90 |
|
XL |
59 |
73.5 |
72.5 |
55.5 |
41.2 |
7.18 |
100.8 |
60.7 |
4.3 |
81.5 |
21 |
61.3 |
39.8 |
 |
 |
 |
 |
