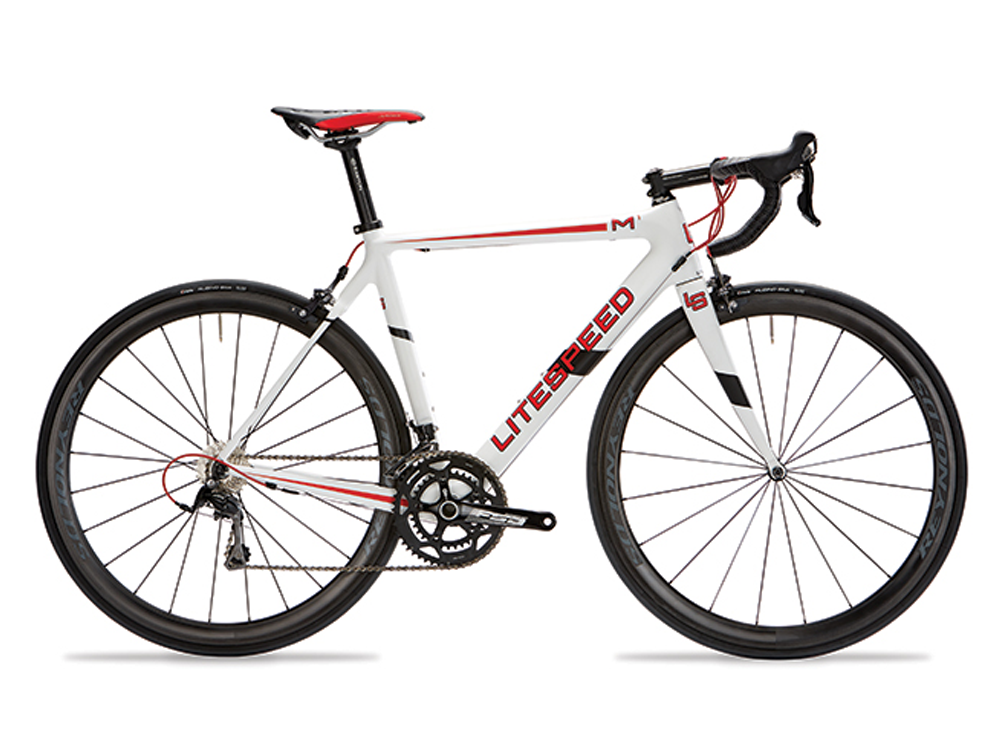

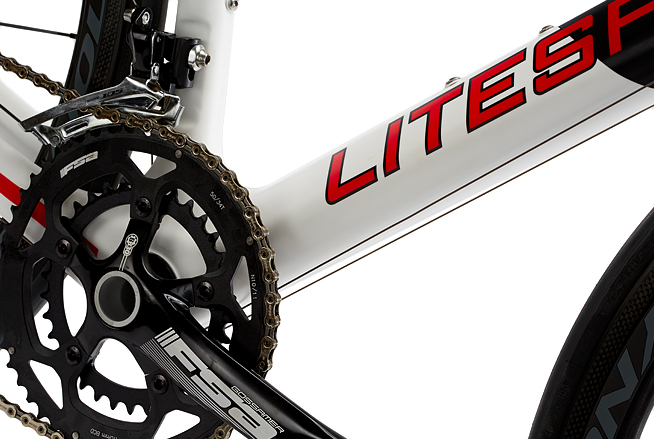

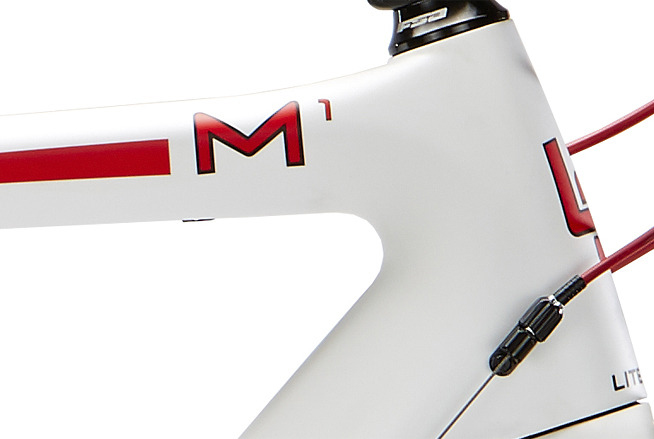

With a new frame design for 2015, the redesigned M1 arrives complete with full Shimano 105 components, Litespeed alloy bar, stem seatpost and Shimano RS-11 wheelset (optional Race version with Reynolds Assault wheelset is pictured).  The elite unidirectional monocoque 24T carbon frame is loaded with features not normally found at this price point. New frame technology includes a box-section profile at the oversized PF30 BB to ensure optimum power transfer, while the unique design of the downtube improves aerodynamics for decreased drag and further improved stiffness. The new, tapered headtube provides precise handling and front end stiffness.  Fun and fast for a solid day of racing or training, this bike is ready to take what the road throws at it.

Component Feature

• 24T carbon fiber
• aero-shaped downtube reduces water-bottle drag
• Shimano 105 components
• Tapered steer and PF30 BB technology
• Litespeed alloy bar/ stem
• Shimano RS-11(optional Race version with Reynolds Assault wheelset is pictured).



GEOMETRY & TECHNICAL SPECS

SIZE	TOP TUBE LENGTH (CM)	HEAD TUBE ANGLE	SEAT TUBE ANGLE	SEAT TUBE (C-T)	CHAIN STAY LENGTH	BB DROP (CM)	WHEEL BASE (CM)	FRONT CENTER (CM)	FORK RAKE (CM)	STAND OVER HEIGHT	HEADTUBE LENGTH (CM)	STACK	REACH
S	52.5	72	74.5	49.5	40.6	7.0	97.2	57.6	4.5	74.4	12.5	52.6	37.7
M	53.5	72	74.0	52.5	40.6	7.0	97.9	58.3	4.3	77.1	14.5	54.5	37.7
ML	55.0	72.5	73.5	55	40.6	7.0	98.5	58.9	4.5	79.1	16.0	56.1	38.3
L	57.0	73.0	73.0	57.5	40.6	7.0	99.6	60	4.5	81.0	18.0	58.2	39.2
XL	59.0	74.0	73.0	73.0	40.6	7.0	101	61.5	4.5	83.5	20	60.2	40.6
