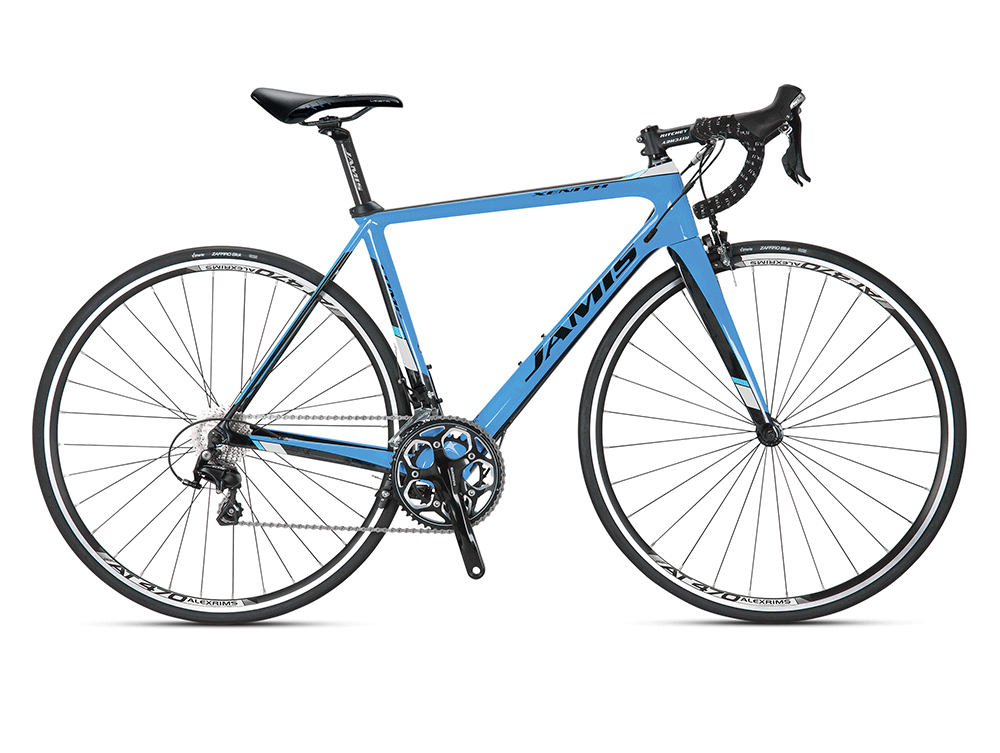

XENITH COMP FEMME

XENITH COMP FEMME
road Bike

Fork : Jamis Road carbon composite fork, FEA optimized Near Net SPV molding process, 1.5” hollow formed crown, monocoque one-piece forming technology, carbon dropouts with stainless axle interfaces
Headset : FSA integrated, sealed bearing with nylon upper Compression ring, 1 1/8-1 1/2”
Wheels : Alex AT 470 rim with TCS (Tubeless Compatible System) with CNC sidewalls, 28/32H, Formula alloy hubs with QR and 14g black stainless steel spokes
Tires : Vittoria Zaffiro Slick, 700 x 23c
Derailleurs : Shimano 105 RD-5800 rear and 105 FD-5800 braze-on
Shiftlevers : Shimano 105, ST- 5800 Dual Control STI, 22-Speed
Chain : Shimano HG600, 11-Speed
Cassette : Shimano 11-Speed, 12-25T
Crankset : Shimano FC-RS500, 50/34T, 165mm (44), 170mm (48/51), 172.5mm (54)
BB Set : FSA EVO PressFit 30 with Wheels MFG EVO adaptors
Pedals : N/A
Brakeset : Shimano BR-5810 direct mount rear and BR-5800 dual pivot front calipers with cartridge pads and Shimano 105 ST-5700 STI brake levers
Handlebar : Ritchey Logic, 6061 aluminum, 31.8 x 380mm (44/48), 400mm (51), 420mm (54)
Stem : Ritchey 4-Axis, 3D forged 6061 alloy, 6o x 90mm (44/48/51), 100mm (54)
Grips : Fizik Superlight Microsoft Touch with Fizik logo and end plug
Seat Post : Jamis carbon fiber micro-adjust, 31.6 x 300mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp
Saddle : Fizik Vesta femme saddle with Intergrated Clip system and MG rails
Sizes : 44, 48, 51, 54cm
Color : Indi-Go Blue

GEOMETRY

SIZE

CENTER of BB to TOP of TT

EFFECTIVE TT LENGTH

HT ANGLE

ST ANGLE

CHAINSTAY

WHEELBASE

FORK RAKE

BB HEIGHT

HEADTUBE

STANDOVER

STACK

REACH

14.88/378

19.49/495

70.5 ̊

76 ̊

16.34/415

38.78/985

1.97/50

10.59/269

3.94/100

27.24/692

19.37/492

14.65/372

16.18/411

19.88/505

71 ̊

75.5 ̊

15.94/405

38.42/976

1.97/50

10.59/269

3.94/100

27.95/710

19.45/494

14.84/377

17.79/452

20.27/515

71.5 ̊

75 ̊

15.94/405

38.50/978

1.97/50

10.59/269

4.72/120

29.13/740

20.28/515

14.84/377

18.58/472

20.86/530

72 ̊

74 ̊

15.94/405

38.31/973

1.69/43

10.59/269

5.51/140

29.92/760

21.18/538

14.80/376
