VENTURA SPORT FEMME

VENTURA SPORT FEMME
Road Bike

Frame : 6061 aluminum, compact sloping top tube frame design, SST tubing diameters, 1 1/8-1.5" tapered head tube, 31.8 seat tube for 27.2 seat post, replaceable derailleur hanger and fender/rack mount eyelets
Fork   Aero straight blade road fork, 1.5 aluminum crown, aluminum blades with chromoly steerer and fender mount eyelets
Headset : FSA Integrated, threadless, 1 1/8”
Wheels : Alex ID-19 double wall alloy rims with GSW sidewall, 28/32H, Formula alloy hubs with QR and 14g stainless steel spokess
Tires : Vittoria Zaffiro, 700 x 25c
Derailleurs : Shimano Claris RD-2400 rear and Shimano Claris FD-2400 front with 31.8mm alloy clamp
Shiftlevers : Shimano Claris ST-2400 Dual Control STI, 16-Speed
Chain : KMC 8-speed Z7
Cassette :   SRAM PG-830 8-Speed 11-32T
Crankset : FSA Tempo compact double, 50/34, 165mm (44/48), 170mm (51/54)
BB Set : FSA sealed cartridge, 68 x 110.5mm
Pedals : Touring platform style, full alloy with toe clips
Brakeset :   Tektro R317 alloy dual pivot calipers with adjustable pads and Shimano Claris ST-2400 STI brake levers
Handlebar : Jamis Ergo, 6061 aluminum, 31.8 x 380mm (44/48), 400mm (51/54)
Stem : Jamis Road, 3D forged 6061 alloy, 7º x 90mm (44/48), 100mm (51/54)
Tape : Jamis suede tape with Jamis logo and "J" end plug
Seat Post : Jamis alloy micro-adjust, 27.2 x 350mm with alloy clamp
Saddle : Jamis Road Sport Femme with SL top and satin steel rails
Sizes : 44, 48, 51, 54cm

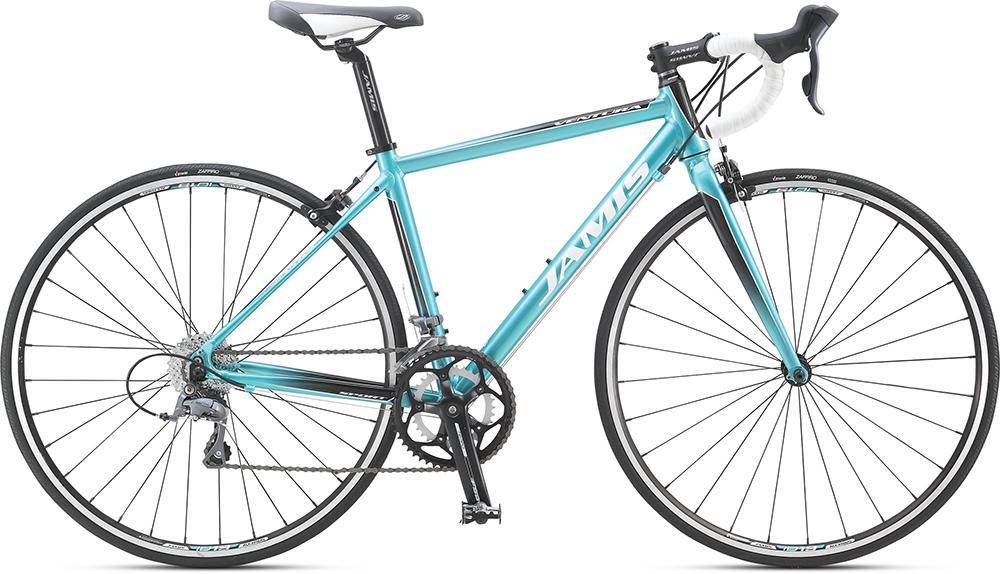

Color : Aspen Sky or Gloss Black
Weight : 22.75 lbs

GEOMETRY

SIZE

CENTER of BB to TOP of TT

EFFECTIVE TT LENGTH

HT ANGLE

ST ANGLE

CHAINSTAY

WHEELBASE

FORK RAKE

BB HEIGHT

HEADTUBE

STANDOVER

STACK

REACH

14.13/359

19.49/495

70.5 ̊

76 ̊

16.34/415

38.82/986

1.97/50

10.51/267

4.72/120

28.03/712

20.67/525

14.21/361

16.53/420

19.88/505

71 ̊

75.5 ̊

16.34/415

38.86/987

1.97/50

10.51/267

4.72/120

28.74/730

20.75/527

14.41/366

18.19/462

20.27/515

71 ̊

75 ̊

16.34/415

39.13/994

1.97/50

10.51/267

5.51/140

29.96/761

21.50/546

14.41/366

18.58/472

20.87/530

71 ̊

74 ̊

16.34/415

39.37/1000

1.97/50

10.51/267

6.30/160

30.43/773

22.24/565

14.41/366
