Products /  Bikes /  Mountain Bike

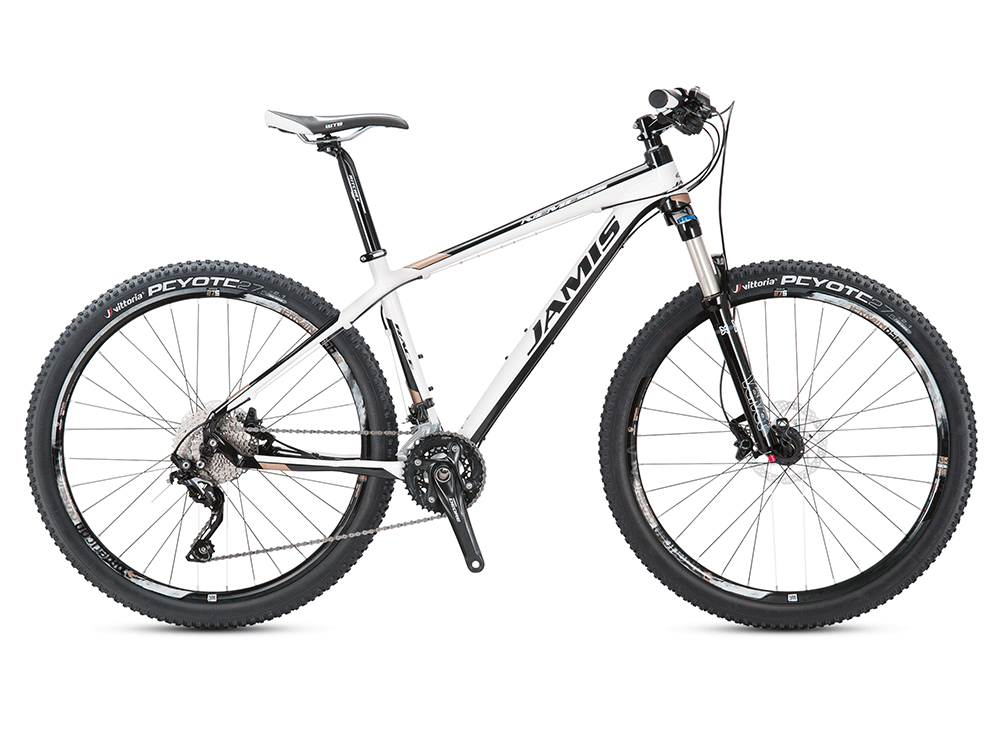

NEMESIS RACE
Mountain Bike
Fork : X-Fusion Velvet RL 27.5", 32mm stanchions, 15mm axle, tapered alloy steerer, air spring, rebound & lockout adjust, magnesium lower legs, 100mm travel
Headset : FSA Orbit 1.5 Zero-Stack internal cup, for tapered head tube, 8mm cone spacer
Wheels : American Classic Terrain 27.5" tubeless wheels,15mm front, 12x142mm rear
Tires : Vittoria Peyote, 27.5 x 2.1”, folding
Derailleurs : Shimano SLX shadow rear and Deore front
Shiftlevers : Shimano Deore, 2x10-speed
Chain : Shimano HG54, 10-speed
Cassette : Shimano HG50, 10-speed, 11-36T
Crankset : Shimano Deore, 38/24T, 170mm (15”), 175mm (17-21”)
BB Set : FSA PressFit 30
Pedals : N/A
Brakeset : Shimano Deore hydraulic disc, 160mm RT56 6-bolt rotors
Handlebar : Ritchey Comp Low Riser, 31.8 x 9o sweep x 20mm rise x 710mm
Stem : Ritchey Comp, 6o x 90mm (15"), 100mm (17"), 110mm (19"), 120mm (21")
Grips : Jamis Lock-On, dual density
Seat Post : Ritchey Comp 2-Bolt, 31.6 x 400mm
Saddle : WTB Volt Comp
Sizes : 15”, 17”, 19”, 21”
Color : Pure White


GEOMETRY


SIZE

CENTER of BB to TOP of TT

EFFECTIVE TT LENGTH

HT ANGLE

ST ANGLE

CHAINSTAY

WHEELBASE

FORK RAKE

BB HEIGHT

HEADTUBE

STANDOVER

15"

13.23/336

22.05/560

70 ̊

72.5 ̊

17.12/435

41.25/1048

1.65/42

12.12/308

3.94/100

28.98/736

17"

15.16/385

23.03/585

70 ̊

72.5 ̊

17.12/435

42.24/1073

1.65/42

12.12/308

4.33/110

30.35/771

19"

16.73/425

23.82/605

70 ̊

72.5 ̊

17.12/435

43.07/1094

1.65/42

12.12/308

5.12/130

31.57/802

21"

18.70/475

24.61/625

70 ̊

72.5 ̊

17.12/435

43.90/1115

1.65/42

12.12/308

5.51/140

32.87/835
